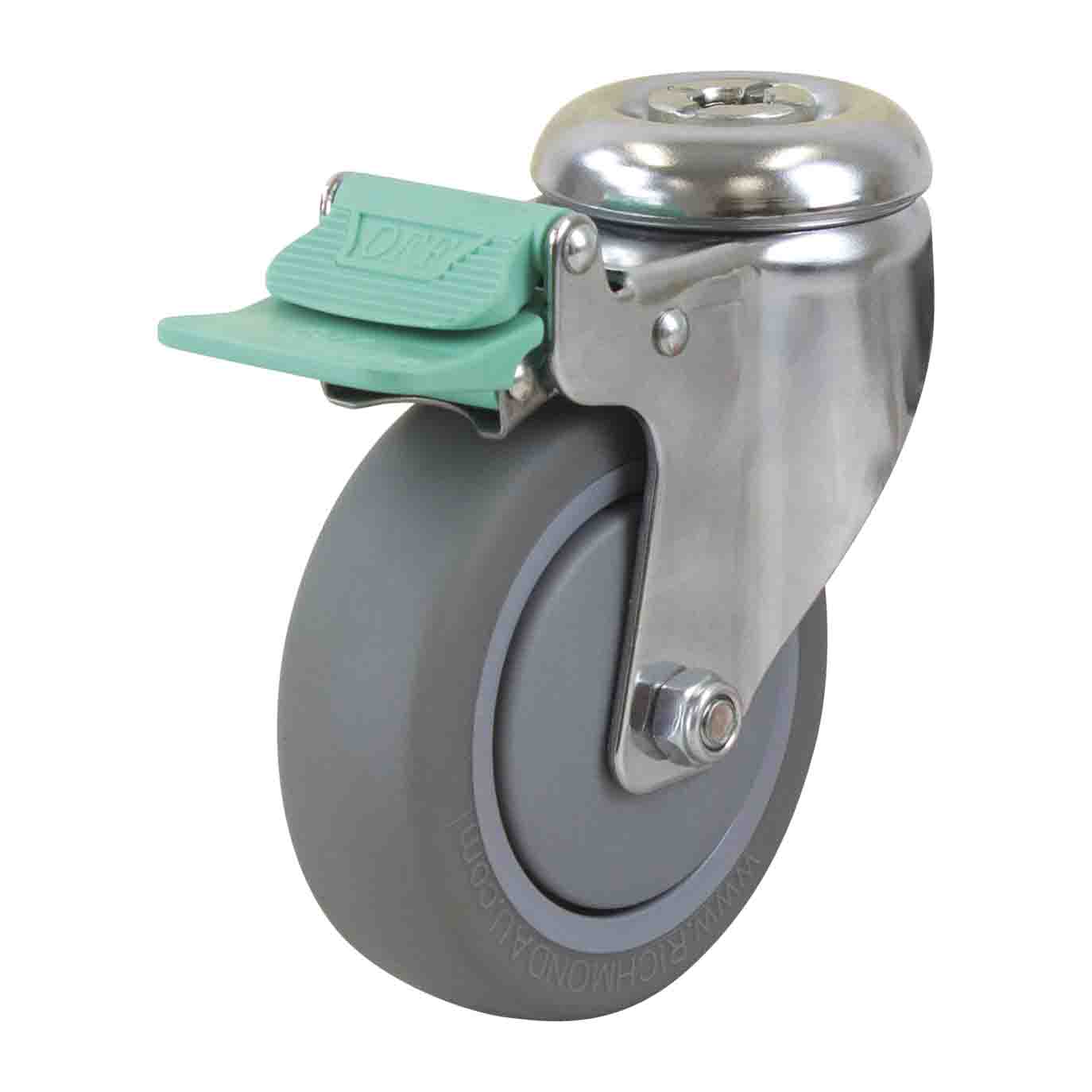

The S4480D by Richmond Wheel and Castor Co. is a swivel frame castor and has a institutional rubber wheel. This swivel castor is in our chrome durolite bolt range and has a maximum capacity of 100kg. The S4480D wheel is fitted with ball bearings and is mounted with a bolt. The swivel frame allows full swivel rotation to enable steering. The diameter of the institutional rubber wheel is 100mm, the wheel width is 32mm and can be ordered separately (iR4004). This model can also be ordered without the direction lock (part number S4480).
This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.
A high quality polished chrome finish makes this castor ideal for use in hospitals, institutions, nursing homes and an attractive edition to furniture and retail displays. With all the features of the plate type castor, the bolt castor has the ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt a robust twin swivel race action providing durability.
| Product Code | S4480D |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Directional Lock |
| Wheel Width (mm) | 32 |
| Wheel Type | Institutional Rubber |
| Wheel Code | IR4004 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 133 |
| Swivel Radius (mm) | 106 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 80 |
| Recommended Load Capacity (kg) | 45 |
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
Addons for your 100mm Inst Rubber Swivel Chrome Durolite Castor (S4480D). Click the product that you’re interested in for more info.
