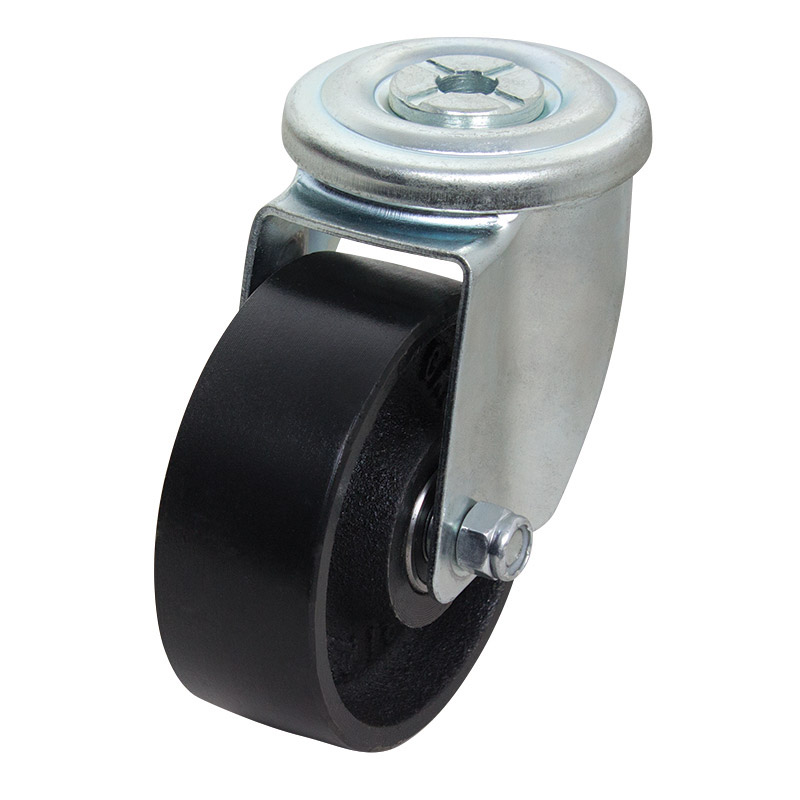

100mm Cast Iron Bolt Hole 300 Series Castor (S4236)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

The S4236 by Richmond Wheel and Castor Co. is a swivel frame castor and uses a cast iron wheel. This swivel castor is one of our 300 series bolt hole range and can safely take loads up to 200kg. The S4236 uses ball bearings for wheel rotation and is mounted with a bolt. The swivel frame of this castor allows the load to be steered. The overall cast iron wheel diameter is 100mm, the wheel width is 38mm and you can order separately (Part Number: Ci400). This model can also be ordered with a brake (part number S4236B).

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code S4236
Wheel Diameter (mm) 100
Frame Type Swivel
Wheel Width (mm) 38
Wheel Type Cast Iron
Wheel Code Ci400
Wheel Bearing Type Ball Bearing
Castor Height (mm) 130
Swivel Radius (mm) 90
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Swivel

Swivel
