100mm Cast Iron Bolt Hole 300 Series Castor (S4234)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

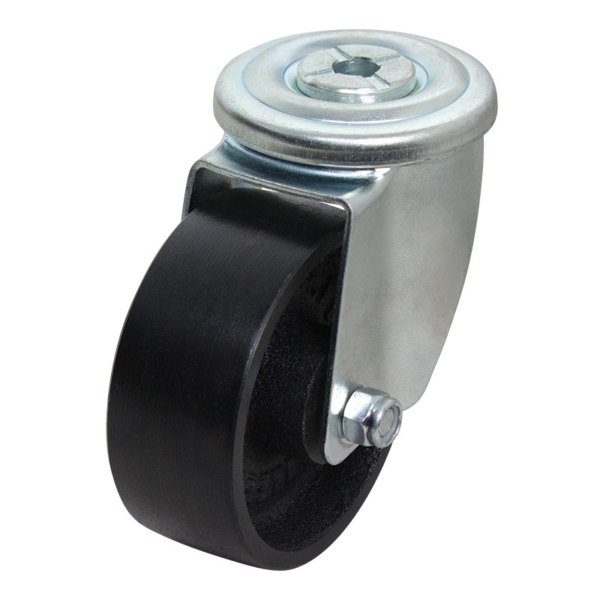

The S4234 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and uses a cast iron wheel. This swivel castor is one of our 300 series bolt hole range and has a top load capacity of 200kg. The S4234 uses plain bearings for wheel rotation and is bolt mount. This castors swivel frame allows full swivel rotation to enable steering. The overall cast iron wheel diameter is 100mm, the wheel width is 38mm and can be ordered separately (Ci421). For the same castor with a brake, see S4234B.

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code S4234
Wheel Diameter (mm) 100
Frame Type Swivel
Wheel Width (mm) 38
Wheel Type Cast Iron
Wheel Code Ci421
Wheel Bearing Type Plain Bore
Castor Height (mm) 130
Swivel Radius (mm) 90
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Temperature range (°C) -30° to 280°
Download CAD Drawing (STEP file) Download
-30˚ to 300˚C Wheel Temp

-30˚ to 300˚C Wheel Temp

12mm Bolt Hole

12mm Bolt Hole

Swivel

Swivel
