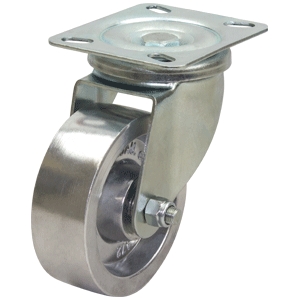

The S4058 by Richmond Wheel and Castor Co. is a swivel frame castor and features an aluminium wheel. This swivel castor is in our 300 series plate range and can hold loads up to 200kg. The S4058 is assembled with oilless bushs on the castors axle and is baseplate mount. The swivel frame allows for full 360° swivel rotation. The overall aluminium wheel diameter is 100mm, the wheel width is 36mm and you can order separately (Part Number: AL473).
Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.
| Product Code | S4058 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 36 |
| Wheel Type | Aluminium |
| Wheel Code | AL473 |
| Wheel Bearing Type | Oilless DU Bush |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Temperature range (°C) | -30° to 280° |
| Download CAD Drawing (STEP file) | Download |
|---|
